C12-Automatic Folding High Speed Bag Sealing Sewing Machine 760

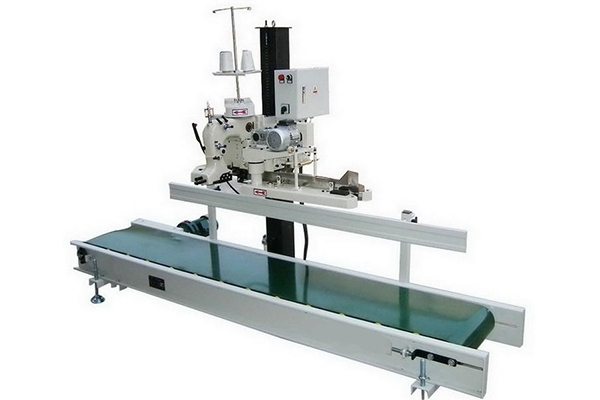

Automatic folding high-speed bag sewing machine This unit consists of a high-speed bag sewing machine, an extended bag folding machine, a support column, a 3.0-meter fixed conveyor and a matching electronic control system. It uses photoelectric control to integrate bag feeding, folding and sewing, greatly improving the packaging strength and effectively preventing loose bags and leaking bags. It is design for use in crimping and sealing of bulk materials in feed, grain, sugar, chemical, port industries. The bag sewing machine uses a high-speed bag sewing machine, photoelectric control has fully automaticaic start and stop sewing, and cutting the line. The position of the bag sewing machine on the support column can be freely adjusted within the range of 400-901mm, fully meeting the sewing requirements of bags of different heights.

Bag sewing machine model DS-9C bag sewing machine
Crimping width 35-50mm
Bag feeding speed 1m-16m/min
Bag height 400-900mm, adjustable
Conveyor length 3.0m, customizable length
Conveyor belt width 400mm
Belt height from ground 200-420mm, adjustable
Compressed air consumption 3.5NL/min
Power supply voltage 380V/50HZ
Motor power Bag sewing machine 370W, crimping machine 140W, conveyor 550W
Weight 200Kg (approx)
