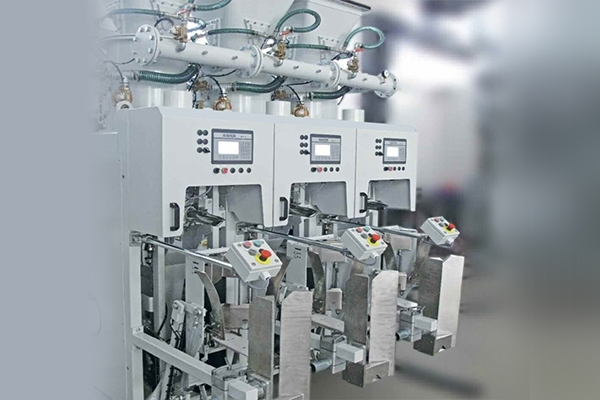

C11-Multi-function Valve Bag Packaging Machine

The multi-station valve bag automatic packaging machine is used to weigh and fill powder, small particles or flake materials into valve bags. Its specially designed feeding system is highly efficient and highly precise during packaging. This series of equipment is equipped with the best quality pneumatic and electrical components, which ensures its durability and low maintenance costs. The packaging unit uses the latest automation components, from simple manual bagging to automatic bagging by manipulators, various configurations can meet different packaging machine automation needs. Palletizing equipment can be configured to setup a fully automatic production line from packaging to palletizing.

When the packaging machine is in operation , the air pressure in the storage bin is different from the discharge port (the location where the valve bag is placed). The pressure difference causes the material to flow into the valve bag placed at the discharge port. The packaging speed is related to the materials specific gravity, fluidity, particle size, humidity, etc. Typical materials suitable for this packaging machine are dry powder, mixed materials or granular materials with a particle size of less than 8mm.

Technical parameters
1. Packaging bag form: valve mouth packaging bag;

2. Sealing form: valve bag small mouth heat sealing;

3. Beat: ≥180 bags/hour;

4. Positive pressure air source: 0.6～0.7Mpa;

5. Suction bag negative pressure air source: -0.04～-0.06Mpa;

6. Power supply: AC380V, 50Hz;

7. Power: 1.8kw.
